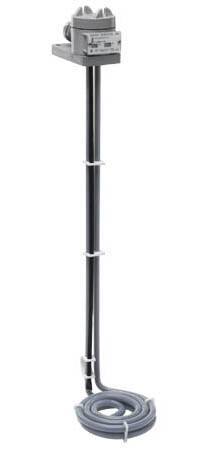

HXFL Series, Low Profile L-Shaped Fluoropolymer (PTFE) Heaters

HX Series, Spiral Fluoropolymer (PTFE) Heaters
Watts Volts Hot Zone
In./(mm)		 Standard
Vertical Length*
In./(mm)		 Diameter
In./(mm)		 Max Cold Zone
In./(mm)		 Model Number Guard Number Ship Weight
Lbs./(kg)
500 120
240		 5 (125) 12 (305) 5 (125) 36 (915) HXFL.5105-R*-**
HXFL.5205-R*-**		 HXFL05-R*G 6 (2.5)
1000 120
240
 6 (155) 12 (305) 6 (155) 36 (915) HXFL1106-R*-**
HXFL1206-R*-**		 HXFL06-R*G 7 (3.5)
2000 120
240
480		 8 (205) 18 (460) 8 (205) 35 (890) HXFL2108-R*-**
HXFL2208-R*-**
HXFL2408-R*-**		 HXFL08-R*G 8 (4)
3000 240
480		 9 (230) 18 (460) 9 (230) 35 (890) HXFL3209-R*-**
HXFL3409-R*-**		 HXFL09-R*G 13 (6)
4000 240
480		 11 (280) 18 (460) 11 (280) 35 (890) HXFL4211-R*-**
HXFL4411-R*-**		 HXFL11-R*G 15 (7)
5000 240
480		 12 (305) 18 (460) 12 (305) 31 (790) HXFL5212-R*-**
HXFL5412-R*-**		 HXFL12-R*G 18 (8)
6000 240
480		 13 (330) 18 (460) 13 (330) 25 (635) HXFL6213-R*-**
HXFL6413-R*-**		 HXFL13-R*G 22 (10)

Single phase only. Guards recommended. This configuration is not recommended for electroless chemistry, phosphoric acid, or
applications prone to sludge buildup; please use DAS series heater for phosphate applications. Heaters in excess of 24 amps may require a non-standard head with 3/4" conduit, please consult factory.

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:
  • Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).

RUGGED CONSTRUCTION:
  • Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purged systems. Guaranteed 100% pinhole free.

OUTSTANDING PERFORMANCE:
  • Low watt density design (10 watts/square inch, 1.5 w/cm2) for long service life.

EVEN HEATING:
  • Flat low profile bottom design for even heating and varying liquid levels. (This configuration not recommended for electroless chemistries.)

CORROSION RESISTANT HEADS: Vapor resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.

SAFETY FEATURES:
  • Grounded internal metal element.
  • Thermal protector built in. Replaceable P1 protector standard for solutions up to 180° F (82° C).
  • Non-floating construction.

CERTIFICATIONS: cULus and CE.

SIZES: 500 watts to 9,000 watts.

VOLTAGES::
  • Three voltage ranges available: 120 to 600 volts.
  • Heater is available in single phase only.

CONSULT FACTORY FOR THE FOLLOWING:

  • Resettable thermal protectors:
    • P2: bi-metal switch for solutions up to 180° F (82° C).
    • P8: type-J thermocouple for solutions from 180° F (82° C) to 210° F (99° C).
    • P3: type-J thermocouple for solutions from 210° F (99° C) to 250° F (121° C).
  • Longer vertical lengths (cold zones).
  • Polypropylene guards: recommended for applications up to 180°F (82°C) (sold separately).
  • Fluoropolymer (PTFE) guards: recommended for chromic acid or solutions over 180° F (82° C) (sold separately).
  • Special configurations.
  • Longer wire and conduit lengths.
  • Flexible continuous fluoropolymer leads (P3 protector only).
  • Lower watt densities for highly viscous solutions and technical acids.
  • Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.

Downloads:
