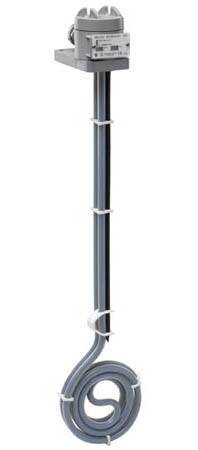

HXF Series, Low Profile Fluoropolymer (PTFE) Heaters

HXF Series, Low Profile Fluoropolymer (PTFE) Heaters
Watts Volts Hot Zone
In./(mm)		 Overall Length
In./(mm)		 Diameter
In./(mm)		 Max Cold Zone
In./(mm)		 Model Number Guard No. Ship Weight
Lbs./(kg)
500 120
240		 6 (155) 14 (355) 5 (125) 36 (915) HXF.5105-14-**
HXF.5205-14-**		 HXF05-14G 6 (2.5)
1000 120
240
 7 (180) 14 (355) 6 (155) 36 (915) HXF1106-14-**
HXF1206-14-**		 HXF06-14G 7 (3.5)
2000 120
240
480		 9 (230) 17 (430) 8 (205) 35 (890) HXF2108-17-**
HXF2208-17-**
HXF2408-17-**		 HXF08-17G 8 (4)
3000 240
480		 10 (255) 23 (585) 9 (230) 35 (890) HXF3209-23-**
HXF3409-23-**		 HXF09-23G 13 (6)
4000 240
480		 12 (305) 29 (735) 11 (280) 35 (890) HXF4211-29-**
HXF4411-29-**		 HXF11-29G 15 (7)
5000 240
480		 13 (330) 35 (890) 12 (305) 31 (790) HXF5212-35-**
HXF5412-35-**		 HXF12-35G 18 (8)
6000 240
480		 14 (355) 40 (1015) 13 (330) 25 (635) HXF6213-40-**
HXF6413-40-**		 HXF13-40G 22 (10)

Single phase only. This configuration is not recommended for electroless chemistry or phosphate acid; please use DAS series heater for
phosphate applications. Heaters in excess of 24 amps may require a non-standard head with 3/4" conduit, please consult factory.

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:
  • Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).

RUGGED CONSTRUCTION:
  • Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purged systems. Guaranteed 100% pinhole free.

SIZES: 500 watts to 9,000 watts.

VOLTAGES::
  • Three voltage ranges available: 120 to 600 volts.
  • Heater is available in single phase only.

CORROSION RESISTANT HEADS: Vapor resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.

OUTSTANDING PERFORMANCE:
  • Low watt density design (10 watts/square inch, 1.5 w/cm2) for long service life. Flat low profile design saves space in the tank. (This configuration not recommended for electroless chemistries or phosphoric acid.)

SAFETY FEATURES:
  • Grounded internal metal element.
  • Thermal protector built in. Replaceable P1 protector standard for solutions up to 180° F (82° C).
  • Non-floating construction.

CERTIFICATIONS: cULus and CE.

CONSULT FACTORY FOR THE FOLLOWING:

  • Resettable thermal protectors:
    • P2: bi-metal switch for solutions up to 180° F (82° C).
    • P8: type-J thermocouple for solutions from 180° F (82° C) to 210° F (99° C).
    • P3: type-J thermocouple for solutions from 210° F (99° C) to 250° F (121° C).
  • Longer vertical lengths (cold zones).
  • Polypropylene guards: recommended for applications up to 180°F (82°C) (sold separately).
  • Fluoropolymer (PTFE) guards: recommended for chromic acid or solutions over 180° F (82° C) (sold separately).
  • Special configurations.
  • Longer wire and conduit lengths.
  • Flexible continuous fluoropolymer leads (P3 protector only).
  • Lower watt densities for highly viscous solutions and technical acids.
  • Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.
