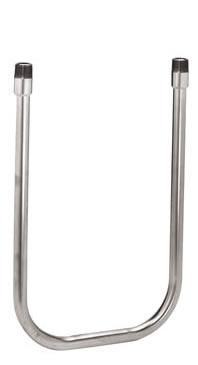

UC Series, Metal Heating and Cooling U Coils - 12" coil width

LENGTH In./(mm)	MODEL NUMBER	SQUARE FEET	SHIP WEIGHT Lbs/(kg)
18 (460)	UC-18	0.75	3 (1.5)
24 (610)	UC-24	1.00	4 (2)
30 (762)	UC-30	1.25	5 (2.5)
36 (915)	UC-36	1.50	6 (3)
42 (1065)	UC-42	1.75	7 (3)
48 (1220)	UC-48	2.00	8 (3.5)
54 (1370)	UC-54	2.25	9 (4)
60 (1525)	UC-60	2.50	10 (4.5)

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:

• Wide variety of materials available for use in heating or cooling applications for alkaline solutions, acid solutions, and rinse tanks. Check solution guide or consult with your chemical supplier for proper material selection.

RUGGED CONSTRUCTION:

• Heavy wall, 18-gauge metal tubing available in steel, 316 stainless steel and titanium.
• 1” diameter tubing.
• 1” MNPT fittings standard.

OUTSTANDING PERFORMANCE:

• One-inch thick, low profile design. Every inch of coil surface is active exchange area. Ideal for small tanks with low heat exchange requirements.

LEAK-FREE OPERATION:

• Single point connections greatly reduces the potential for leaks and simplifies installation. One-inch MNPT connections standard.

SIZES:

• .75 square ft. to 2.5 square ft. of exchange area standard.

HIGH PRESSURE RATING:

• 100 PSI working pressure (steam or water).

CONSULT FACTORY FOR THE FOLLOWING OPTIONS:

• Special sizes and configurations.
• Heavier gauge tubing.
• Zirconium, Hastelloy C®, low carbon stainless steel, and other alloys available.
• Fluoropolymer coatings for corrosion protection at solution/atmospheric interface.
• Non-conductive isolator couplings.
• L-shaped configurations for bottom heat applications.
• Higher pressure ratings available.
• Hastelloy C® is a registered trademark of Haynes International, Inc.
