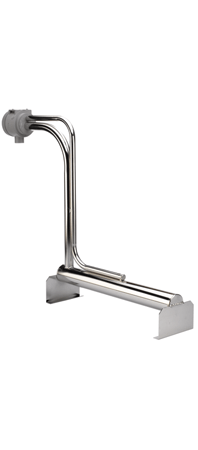

Immersion Heaters: L Series, L-Shaped Metal Heater

Immersion Heaters: L Series, L-Shaped Metal Heater
WATTS VOLTS HORIZ.
In./(mm)
STD.
VERT.*
In./(mm)
Steel Model No. 304SS Model No. 316SS Model No. Titanium Model No. SHIP
WGT.
Lbs./(kg)
1000 120
240
13
(330)
15
(380)
LP1113-R*-**
LP1213-R*-**
LF1113-R*-**
LF1213-R*-**
LS1113-R*-**
LS1213-R*-**
LT1113-R*-**
LT1213-R*-**
10
(4.5)
2000 120
240
480
17
(430)
19
(485)
LP2117-R*-**
LP2217-R*-**
LP2417-R*-**
LF2117-R*-**
LF2217-R*-**
LF2417-R*-**
LS2117-R*-**
LS2217-R*-**
LS2417-R*-**
LT2117-R*-**
LT2217-R*-**
LT2417-R*-**
11
(5)
3000 240
480
22
(560)
25
(635)
LP3222-R*-**
LP3422-R*-**
LF3222-R*-**
LF3422-R*-**
LS3222-R*-**
LS3422-R*-**
LT3222-R*-**
LT3422-R*-**
12
(5.5)
4000 240
480
26
(660)
25
(635)
LP4226-R*-**
LP4426-R*-**
LF4226-R*-**
LF4426-R*-**
LS4226-R*-**
LS4426-R*-**
LT4226-R*-**
LT4426-R*-**
13
(6)
5000 240
480
31
(790)
37
(940)
LP5231-R*-**
LP5431-R*-**
LF5231-R*-**
LF5431-R*-**
LS5231-R*-**
LS5431-R*-**
LT5231-R*-**
LT5431-R*-**
14
(6.5)
6000 240
480
36
(915)
50
(1270)
LP6236-R*-**
LP6436-R*-**
LF6236-R*-**
LF6436-R*-**
LS6236-R*-**
LS6436-R*-**
LT6236-R*-**
LT6436-R*-**
15
(7)
8000 240
480
44
(1120)
50
(1270)
LP8244-R*-**
LP8444-R*-**
LF8244-R*-**
LF8444-R*-**
LS8244-R*-**
LS8444-R*-**
LT8244-R*-**
LT8444-R*-**
18
(8)
9000 240
480
50
(1270)
50
(1270)
LP9250-R*-**
LP9450-R*-**
LF9250-R*-**
LF9450-R*-**
LS9250-R*-**
LS9450-R*-**
LT9250-R*-**
LT9450-R*-**
20
(9)
10000 240
480
55
(1400)
50
(1270)
LP10255-R*-**
LP10455-R*-**
LF10255-R*-**
LF10455-R*-**
LS10255-R*-**
LS10455-R*-**
LT10255-R*-**
LT10455-R*-**
22
(10)
12000 240
480
64
(1625)
50
(1270)
LP12264-R*-**
LP12464-R*-**
LF12264-R*-**
LF12464-R*-**
LS12264-R*-**
LS12464-R*-**
LT12264-R*-**
LT12464-R*-**
25
(11.5)

*Specify vertical length by adding height in inches after "-R". Example: LS2217-R24-P1. Single phase standard, three phase available as option.
**Thermal Overload Protection

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:
  • Materials available for use in most aqueous alkaline solutions, plating solutions, and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION:
  • Heavy wall metal sheaths and screw plug available in steel, 304 stainless steel, 316 stainless steel and titanium.

OUTSTANDING PERFORMANCE:
  • Watt densities of 35 watts per square inch (5.4 w/cm2) ensure long service life.

CORROSION RESISTANT HEAD:
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:
  • Grounded construction.
  • Thermal protector built in. Replaceable P1 protector standard for solutions up to 180° F (82° C).
  • Non-floating construction.

CERTIFICATIONS:
  • UL listed (except steel) to U.S. and Canadian safety requirements, and CE.

SIZES:
  • 1000 watts to 12,000 watts.

VOLTAGES:
  • 120 to 600 volts. Single phase standard, three phase available.

CONSULT FACTORY FOR THE FOLLOWING:

  • Replaceable thermal protectors:
    • P4: for solutions from 180° F (82° C) to 230° F (110° C).
  • Resettable thermal protectors:
    • P2: bi-metal switch for solutions up to 180° F (82° C).
    • P6: for solutions from 180° F (82° C) to 230° F (110° C).
  • Special configurations and lengths.
  • Longer wire and conduit lengths.
  • Longer sludge legs.
  • Flexible risers (available with P2 thermal protectors only).
  • Lower watt densities for highly viscous solutions.
  • Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.
