Thermowells: W Series

Thermowells: W Series

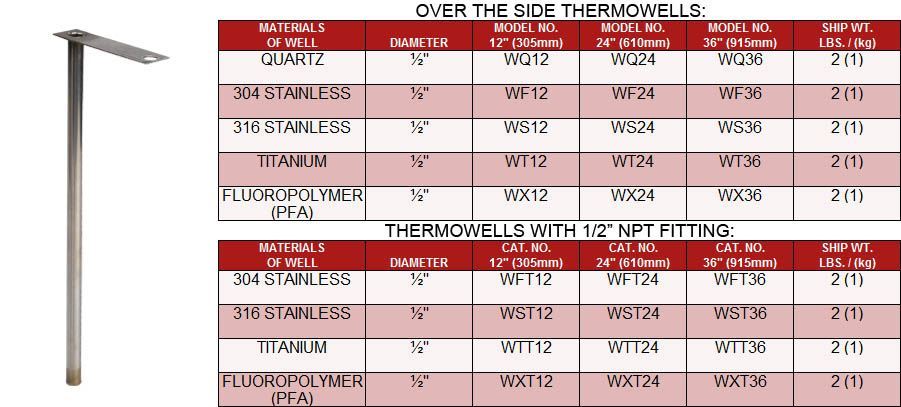

Over the side Thermowells:

MATERIAL OF WELL DIAMETER MODEL No.
12" (305mm) 		MODEL No.
24" (610mm) 		MODEL No.
36" (915mm) 		SHIP WEIGHT
Lbs/(kg)
Quartz 1/2" WQ12 WQ24 WQ36 2 (1)
304 Stainless 1/2" WF12 WF24 WF36 2 (1)
316 Stainless 1/2" WS12 WS24 WS36 2 (1)
Titanium 1/2" WT12 WT24 WT36 2 (1)
Fluoropolymer (PFA) 1/2" WX12 WX24 WX36 2 (1)

Thermowells with 1/2" NPT Fitting:

MATERIAL OF WELL DIAMETER MODEL No.
12" (305mm) 		MODEL No.
24" (610mm) 		MODEL No.
36" (915mm) 		SHIP WEIGHT
Lbs/(kg)
304 Stainless 1/2" WFT12 WFT24 WFT36 2 (1)
316 Stainless 1/2" WST12 WST24 WST36 2 (1)
Titanium 1/2" WTT12 WTT24 WTT36 2 (1)
Fluoropolymer (PFA) 1/2" WXT12 WXT24 WXT36 2 (1)
Can be ordered as part of a combination temperature control assembly.

MATERIALS OF CONSTRUCTION:
  • Quartz.
  • 304 Stainless Steel.
  • 316 Stainless Steel.
  • Titanium
  • Fluoropolymer (PTFE) covered 316 stainless steel

CAPACITIES:
  • OVER THE SIDE MODELS: ½ inch diameter tubing with mounting flange standard.
  • THREADED MODELS: ½ inch MNPT standard.

CONSULT FACTORY FOR THE FOLLOWING OPTIONS:
  • Special Diameters.
  • Metric Sizes.
  • Special Lengths.
