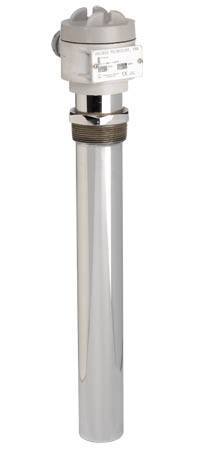

T Series, 2" Tubular Screw Plug Heaters

Watts	Volts	Overall Length In./(mm)	Pipe Thread	304 SS	316 SS	Titanium	Ship Weight Lbs./(kg)
1000	120 240	10 (255)	2"	FT1110 FT1210	ST1110 ST1210	TT1110 TT1210	11 (5)
2000	120 240 480	14 (355)	2"	FT2114 FT2214 FT2414	ST2114 ST2214 ST2414	TT2114 TT2214 TT2414	14 (6.5)
3000	240 480	19 (485)	2"	FT3219 FT3419	ST3219 ST3419	TT3219 TT3419	16 (7.5)
4000	240 480	23 (585)	2"	FT4223 FT4423	ST4223 ST4423	TT4223 TT4423	20 (9)
6000	240 480	33 (840)	2"	FT6233 FT6433	ST6233 ST6433	TT6233 TT6433	26 (12)
8000	240 480	40 (1015)	2"	FT8240 FT8440	ST8240 ST8440	TT8240 TT8440	29 (13.5)
9000	240 480	47 (1195)	2"	FT9247 FT9447	ST9247 ST9447	TT9247 TT9447	32 (14.5)
12000	240 480	61 (1550)	2"	FT12261 FT12461	ST12261 ST12461	TT12261 TT12461	37 (17)

Other sizes available, consult factory.

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:

• For use in most aqueous alkaline solutions and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION:

• Heavy wall metal sheaths and screw plug available in steel, 304 stainless steel, 316 stainless steel and titanium.

OUTSTANDING PERFORMANCE:

• Watt densities of 35 watts per square inch (5.4 w/cm2) ensure long service life.

CORROSION RESISTANT HEAD:

• Vapor resistant, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:

• Grounded construction.

CERTIFICATIONS:

• cULus and CE

SIZES:

• 1000 watts to 12,000 watts.

VOLTAGES:

• 120 to 600 volts. Single phase standard, three phase available.

CONSULT FACTORY FOR THE FOLLOWING:

• Special configurations and lengths.
• Explosion resistant enclosures.
• Longer wire and conduit lengths.
• Lower watt densities for highly viscous solutions.
• Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.

Downloads:

• T Series, 2" Tubular Screw Plug Heaters information
