SmartOne S1 Series, Metal Over the Side Immersion Heaters

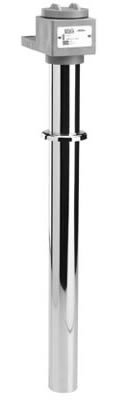

S1 Series Smartone - Metal Over The Side Heaters
Watts Volts Hot Zone
In./(mm)		 Overall Length
In./(mm)		 304 SS 316 SS Titanium Ship Weight
Lbs./(kg)
1000 100-120
200-240		 7 (180) 11 (280) S1F1111
S1F1211		 S1S1111
S1S1211		 S1T1111
S1T1211		 7 (3.5)
2000 100-120
200-240		 13 (330) 17 (430) S1F2117
S1F2217
 S1S2117
S1S2217		 S1T2117
S1T2217
 10 (4.5)
3000 200-240 18 (460) 23 (585) S1F3223 S1S3223 S1T3223 11 (5)
4000 200-240 24 (610) 29 (735) S1F4229
 S1S4229 S1T4229 13 (6)
5000 200-240 30 (760) 35 (890) S1F5235
 S1S5235 S1T5235 15 (7)
6000 200-240 35 (890) 41 (1040) S1F6241
 S1S6241 S1T6241 17 (8)
1600 380-480 13 (330) 17 (430) S1F1.6417 S1S1.6417 S1T1.6417 10 (4.5)
2400 380-480 18 (460) 23 (585) S1F2.4423 S1S2.4423 S1T2.4423 11 (5)
3200 380-480 24 (610) 29 (735) S1F3.2429
 S1S3.2429 S1T3.2429 13 (6)
4000 380-480 30 (760) 35 (890) S1F14435
 S1S14435 S1T14435 15 (7)
4800 380-480 35 (890) 41 (1040) S1F4.8441
 S1S4.8441 S1T4.8441 17 (8)
5600 380-480 41 (1040) 47 (1195) S1F5.6447 S1S5.6447 S1T5.6447 23 (10.5)
Single phase standard, add "-3" for three phase. Note: Should be installed with C or D rated branch fusing.

Features and Benefits

LONG ELEMENT LIFE:
  • Patented PTC heater element lasts longer than conventional heaters.
  • Will not burn out if run in air.
  • Will not burn out due to scale or sludge buildup.

SAFE DESIGN:
  • Heater self limits its maximum operating temperature to 482 °F (250 °C). This is lower than the ignition point of most plastics.
  • Will not melt tanks when a 1/2" (12mm) minimum distance is maintained.
  • Overtemperature protection devices are not required.
  • Safety is built-in, not added on.
  • Metal-grounded construction (earth ground).
  • Non-floating construction.

SIZES: 1,000 watts (1kW) to 6,000 watts (6kW).

VOLTAGES::
  • Three voltage ranges available: 100-120 volt, 200-240 volt, and 380-480 volt.
  • Heater is available in single or three phase power.

CORROSION RESISTANT HEADS: Vapor resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.

OUTSTANDING PERFORMANCE:
  • Watt densities of 26 watts per square inch (4 watts/cm2) ensure long service life.
  • Auto-stabilizing solid state element prevents hot spots and ensures uniform heating.
  • Heater derates itself in highly viscous and high temperature solutions. Consult factory for sizing assistance.

CHEMICALLY RESISTANT:
For use in most aqueous alkaline, electroplating and rinse solutions. Check our Solution Guide or with your chemical supplier for recommended sheath material. Available in:
  • 304 stainless steel
  • 316 stainless steel
  • Titanium

CERTIFICATIONS: cULus and CE.

Consult factory for the following:

  • Longer wire and conduit lengths.
  • Extended cold zones.
  • Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.
