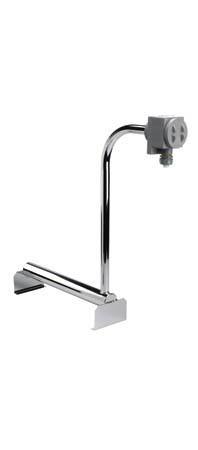

SmartOne S1L Series, Metal Bottom Heaters

S1L smartone
Watts Volts Horizontal
Length
In./(mm)		 Vertical Length
In./(mm)		 304 SS 316 SS Titanium Ship Weight
Lbs./(kg)
1000 100-240 13 (330) 15 (381) S1LF1113-R** S1LS1113-R** S1LT1113-R** 10 (4.5)
2000 100-120
200-240		 17 (430) 19 (483) S1LF2117-R**
S1LF2217-R** 		S1LS2117-R**
S1LS2217-R**		 S1LT2117-R**
S1LT2217-R**
 11 (5)
3000 200-240 23 (585) 25 (635) S1LF3223-R** S1LS3223-R** S1LT3223-R** 12 (5.5)
4000 200-240 29 (735) 25 (635) S1LF4229-R** S1LS4229-R** S1LT4229-R** 13 (6)
5000 200-240 35 (890) 37 (940) S1LF5235-R** S1LS5235-R** S1LT5235-R** 14 (6.5)
6000 200-240 41 (1040) 50 (1270) S1LF6241-R** S1LS6241-R** S1LT6241-R** 15 (7)
1600 380-480 17 (430) 19 (483) S1LF1.6417-R** S1LS1.6417-R** S1LT1.6417-R** 11 (5)
2400 380-480 23 (585) 25 (635) S1LF2.4423-R** S1LS2.4423-R** S1LT2.4423-R** 12 (5.5)
3200 380-480 29 (735) 25 (635) S1LF3.2429-R** S1LS3.2429-R** S1LT3.2429-R** 13 (6)
4000 380-480 35 (890) 37 (940) S1LF4435-R** S1LS4435-R** S1LT4435-R** 14 (6.5)
4800 380-480 41 (1040) 50 (1270) S1LF4.8441-R** S1LS4.8441-R** S1LT4.8441-R** 15 (7)
5600 380-480 47 (1195) 50 (1270) S1LF5.6447-R** S1LS5.6447-R** S1LT5.6447-R** 18 (8)
Single phase standard, insert "-3" for three phase before riser designator. Note: Should be installed with C or D rated branch fusing.

** Specify riser length.

Features and Benefits

LONG ELEMENT LIFE:
  • Patented PTC heater element lasts longer than conventional heaters.
  • Will not burn out if run in air.
  • Will not burn out due to scale or sludge buildup.

SAFE DESIGN:
  • Heater self limits its maximum operating temperature to 482 °F (250 °C). This is lower than the ignition point of most plastics.
  • 1" (25mm) sludge legs. Will not melt tanks when a 1/2" (12mm) minimum distance is maintained.
  • Overtemperature protection devices are not required.
  • Safety is built-in, not added on.
  • Metal-grounded construction (earth ground).
  • Non-floating construction.

SIZES: 1,000 watts (1kW) to 6,000 watts (6kW).

VOLTAGES::
  • Three voltage ranges available: 100-120 volt, 200-240 volt, and 380-480 volt.
  • Heater is available in single or three phase power.

CORROSION RESISTANT HEADS: Vapor resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.

OUTSTANDING PERFORMANCE:
  • Watt densities of 26 watts per square inch (4 watts/cm2) ensure long service life.
  • Auto-stabilizing solid state element prevents hot spots and ensures uniform heating.
  • Heater derates itself in highly viscous and high temperature solutions. Consult factory for sizing assistance.

CHEMICALLY RESISTANT:
For use in most aqueous alkaline, electroplating and rinse solutions. Check our Solution Guide or with your chemical supplier for recommended sheath material. Available in:
  • 304 stainless steel
  • 316 stainless steel
  • Titanium

CERTIFICATIONS: cULus and CE.

Consult factory for the following:

  • Longer wire and conduit lengths.
  • Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.

Downloads:
