SmartOne 3L Series, Metal Over the Side Immersion Heaters

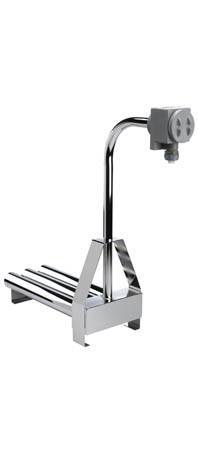

S13L Series, Smartone Metal Bottom Heaters
Watts Volts Horizontal
Length
In./(mm)		 Vertical Length
In./(mm)		 304 SS 316 SS Titanium Ship Weight
Lbs./(kg)
3000 200-240 13 (330) 15 (381) S13LF3213-R** S13LS3213-R** S13LT3213-R** 30 (13.5)
6000 200-240 17 (430) 37 (940) S13LF6217-R** S13LS6217-R** S13LT6217-R** 33 (15)
9000 200-240 23 (585) 37 (940) S13LF9223-R** S13LS9223-R** S13LT9223-R** 36 (16.5)
12000 200-240 29 (735) 37 (940) S13LF12229-R** S13LS12229-R** S13LT12229-R** 39 (17.5)
15000 200-240 35 (890) 37 (940) S13LF15235-R** S13LS15235-R** S13LT15235-R** 42 (19)
18000 200-240 41 (1040) 50 (1270) S13LF18241-R** S13LS18241-R** S13LT18241-R** 45 (20.5)
2400 380-480 13 (330) 15 (381) S13LF2.4413-R** S13LS2.4413-R** S13LT2.4413-R** 30 (13.5)
4800 380-480 17 (430) 37 (940) S13LF4.8417-R** S13LS4.8417-R** S13LT4.8417-R** 33 (15)
7200 380-480 23 (585) 37 (940) S13LF7.2423-R** S13LS7.2423-R** S13LT7.2423-R** 36 (16.5)
9600 380-480 29 (735) 37 (940) S13LF9.6429-R** S13LS9.6429-R** S13LT9.6429-R** 39 (17.5)
12000 380-480 35 (890) 37 (940) S13LF12435-R** S13LS12435-R** S13LT12435-R** 42 (19)
14400 380-480 41 (1040) 50 (1270) S13LF14.4441-R** S13LS14.4441-R** S13LT14.4441-R** 45 (20.5)
16800 380-480 47 (1195) 50 (1270) S13LF16.8447-R** S13LS16.8447-R** S13LT16.8447-R** 67 (30.5)
Three phase standard, add "-1" for single phase after riser designator. Note: Should be installed with C or D rated branch fusing.

** Specify riser length.

Features and Benefits

LONG ELEMENT LIFE:
  • Patented PTC heater element lasts longer than conventional heaters.
  • Will not burn out if run in air.
  • Will not burn out due to scale or sludge buildup.

SAFE DESIGN:
  • Heater self limits its maximum operating temperature to 482 °F (250 °C). This is lower than the ignition point of most plastics.
  • 2" (50mm) sludge legs. Will not melt tanks when a 1/2" (12mm) minimum distance is maintained.
  • Overtemperature protection devices are not required.
  • Safety is built-in, not added on.
  • Metal-grounded construction (earth ground).
  • Non-floating construction.

SIZES: 2,400 watts (2.4kW) to 18,000 watts (18kW).

VOLTAGES::
  • Three voltage ranges available: 100-120 volt, 200-240 volt, and 380-480 volt.
  • Heater is available in single or three phase power.

CORROSION RESISTANT HEADS: Vapor resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.

OUTSTANDING PERFORMANCE:
  • Watt densities of 26 watts per square inch (4 watts/cm2) ensure long service life.
  • Auto-stabilizing solid state element prevents hot spots and ensures uniform heating.
  • Heater derates itself in highly viscous and high temperature solutions. Consult factory for sizing assistance.

CHEMICALLY RESISTANT:
For use in most aqueous alkaline, electroplating and rinse solutions. Check our Solution Guide or with your chemical supplier for recommended sheath material. Available in:
  • 304 stainless steel
  • 316 stainless steel
  • Titanium

CERTIFICATIONS: cULus and CE.

Consult factory for the following:

  • Longer wire and conduit lengths.
  • Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.
