HXO Series, Fluoropolymer (PTFE) Heaters

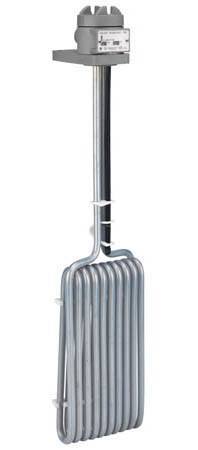

HX Series, Spiral Fluoropolymer (PTFE) Heaters
Watts Volts Width
In./(mm)		 Heater
Pad Length
In./(mm)		 Overall
Length
In./(mm)		 Max Cold
Zone
In./(mm)		 Model Number Gurad Number Ship Weight
Lbs./(kg)
500 120
240		 5 (125) 6 (155) 11 (280) 36 (915) HXO.5105-06-11-**
HXO.5205-06-11-**		 HXO05-11G 6 (2.5)
1000 120
240
 6 (155) 7 (180) 11 (280) 36 (915) HXO1106-06-11-**
HXO1206-06-11-**		 HXO06-11G 7 (3.5)
2000 120
240
480		 6 (155) 10 (255) 17 (430) 35 (890) HXO2106-10-17-**
HXO2206-10-17-**
HXO2406-10-17-**		 HXO06-17G 8 (4)
3000 240
480		 6 (155) 12 (305) 23 (585) 35 (890) HXO3206-12-23-**
HXO3406-12-23-**		 HXO06-23G 13 (6)
4000 240
480		 6 (155) 19 (485) 29 (735) 35 (890) HXO4206-19-29-**
HXO4406-19-29-**		 HXO06-29G 15 (7)
5000 240
480		 6 (155) 20 (510) 35 (890) 31 (790) HXO5206-20-35-**
HXO5406-20-35-**		 HXO06-35G 18 (8)
6000 240
480		 8 (205) 22 (560) 40 (1015) 25 (635) HXO6208-22-40-**
HXO6408-22-40-**		 HXO08-40G 22 (10)
8000 240
480		 8 (205) 36 (915) 47 (1195) 28 (710) 2HXO8208-36-47-**
2HXO8408-36-47-**		 HXO08-47G 25 (11.5)
9000 240
480		 8 (205) 40 (1015) 54 (1370) 30 (760) 2HXO9208-40-54-**
2HXO9408-40-54-**		 HXO08-54G 28 (13)

Single phase only. NOTE: Hot zone extends 2" (51mm) above the heater pad length. Heaters in excess of 24 amps may require a non-standard head with 3/4" conduit, please consult factory.

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:
  • Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).

RUGGED CONSTRUCTION:
  • Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purged systems. Guaranteed 100% pinhole free.

OUTSTANDING PERFORMANCE:
  • Low watt density design (10 watts/square inch, 1.5 w/cm2) for long service life.

CORROSION RESISTANT HEADS: Vapor resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.

SAFETY FEATURES:
  • Grounded internal metal element.
  • Thermal protector built in. Replaceable P1 protector standard for solutions up to 180° F (82° C).
  • Non-floating construction.

CERTIFICATIONS: cULus and CE.

SIZES: 500 watts to 9,000 watts.

VOLTAGES::
  • Three voltage ranges available: 120 to 600 volts.
  • Heater is available in single phase only.

CONSULT FACTORY FOR THE FOLLOWING:

  • Replaceable thermal protectors:
    • P4: for solutions from 180° F (82° C) to 230° F (110° C).
  • Resettable thermal protectors:
    • P2: bi-metal switch for solutions up to 180° F (82° C).
    • P8: type-J thermocouple for solutions from 180° F (82° C) to 210° F (99° C).
    • P3: type-J thermocouple for solutions from 210° F (99° C) to 250° F (121° C).
  • Longer vertical lengths (cold zones).
  • Polypropylene guards: recommended for applications up to 180°F (82°C) (sold separately).
  • Fluoropolymer (PTFE) guards: recommended for chromic acid or solutions over 180° F (82° C) (sold separately).
  • Special configurations.
  • Longer wire and conduit lengths.
  • Flexible continuous fluoropolymer leads (P3 protector only).
  • Lower watt densities for highly viscous solutions and technical acids.
  • Temperature and level controls sized to match the heater.

NOTE: Hot zone extends 2" (51mm) above the heater pad length.

We recommend temperature controls and level controls for use with this immersion heater.
