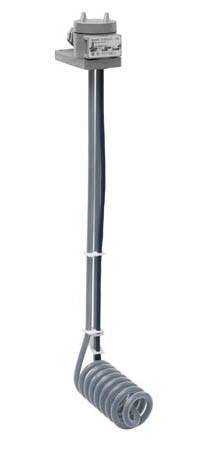

HXL Series, Spiral L-Shaped Fluoropolymer (PTFE) Heaters

HXL Series, Spiral L-shaped Fluoropolymer (PTFE) Heaters
Watts Volts Hot Zone
In./(mm)		 Standard
Vertical Length*
In./(mm)		 Max Cold Zone
In./(mm)		 Model Number Guard Number Ship Weight
Lbs./(kg)
500 120
240		 6 (155) 12 (305) 41 (1040) HXL.5106-R*-**
HXL.5206-R*-**		 HXL06-R*G 6 (2.5)
1000 120
240
 8 (205) 12 (305) 41 (1040) HXL1108-R*-**
HXL1208-R*-**		 HXL08-R*G 7 (3.5)
2000 120
240
480		 12 (305) 18 (460) 40 (1015) HXL2112-R*-**
HXL2212-R*-**
HXL2412-R*-**		 HXL12-R*G 8 (4)
3000 240
480		 17 (430) 18 (460) 40 (1015) HXL3217-R*-**
HXL3417-R*-**		 HXL17-R*G 13 (6)
4000 240
480		 20 (510) 18 (460) 40 (1015) HXL4220-R*-**
HXL4420-R*-**		 HXL20-R*G 15 (7)
5000 240
480		 24 (610) 18 (460) 36 (915) HXL5224-R*-**
HXL5424-R*-**		 HXL24-R*G 18 (8)
6000 240
480		 29 (735) 18 (460) 30 (760) HXL6229-R*-**
HXL6429-R*-**		 HXL29-R*G 21 (10)
8000 240
480		 37 (940) 18 (460) 32 (810) 2HXL8237-R*-**
2HXL8437-R*-**		 HXL37-R*G 26 (12)
9000 240
480		 44 (1120) 18 (460) 35 (890)
 2HXL9244-R*-**
2HXL9444-R*-**		 HXL44-R*G 29 (13)
Single phase only. This configuration is not recommended for electroless chemistry or applications prone to sludge buildup. Heaters in excess of 24 amps may require a non-standard head with 3/4" conduit, please consult factory.

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:
  • Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).

RUGGED CONSTRUCTION:
  • Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purged systems. Guaranteed 100% pinhole free.

SIZES: 500 watts to 9,000 watts.

VOLTAGES:
  • Three voltage ranges available: 120 to 600 volts.
  • Heater is available in single phase only.

CORROSION RESISTANT HEADS: Vapor resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.

EVEN HEATING:
  • Bottom design for even heating and varying liquid levels.

OUTSTANDING PERFORMANCE:
  • Low watt density design (10 watts/square inch, 1.5 w/cm2) for long service life.

SAFETY FEATURES:
  • Grounded internal metal element.
  • Thermal protector built in. Replaceable P1 protector standard for solutions up to 180° F (82° C).
  • Non-floating construction.

CERTIFICATIONS: cULus and CE.

CONSULT FACTORY FOR THE FOLLOWING:

  • Resettable thermal protectors:
    • P2: bi-metal switch for solutions up to 180° F (82° C).
    • P8: type-J thermocouple for solutions from 180° F (82° C) to 210° F (99° C).
    • P3: type-J thermocouple for solutions from 210° F (99° C) to 250° F (121° C).
  • Longer vertical lengths (cold zones).
  • Polypropylene guards: recommended for applications up to 180°F (82°C) (sold separately).
  • Fluoropolymer (PTFE) guards: recommended for chromic acid or solutions over 180° F (82° C) (sold separately).
  • Special configurations.
  • Longer wire and conduit lengths.
  • Flexible continuous fluoropolymer leads (P3 protector only).
  • Lower watt densities for highly viscous solutions and technical acids.
  • Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.
