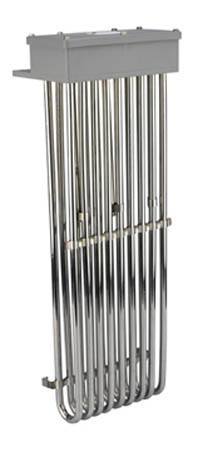

9HS Series, Nine Element Stainless Steel Heaters

9HS Series, Nine Element Stainless Steel Heaters
Watts Volts Hot Zone in./(mm) Length in./(mm) Model Number SHIP WT. Lbs./(kg)
9000 240 10 (255) 17 (430) 9HS9217-** 16 (7.5)
9000 480 10 (255) 17 (430) 9HS9417-** 16 (7.5)
13500 240 16 (405) 23 (585) 9HS13.5223-** 19 (9)
13500 480 16 (405) 23 (585) 9HS13.5423-** 19 (9)
22500 240 20 (510) 29 (735) 9HS22.5229-** 23 (10.5)
22500 480 20 (510) 29 (735) 9HS22.5429-** 23 (10.5)
31500 240* 25 (635) 34 (865) 9HS31.5234-M-** 25 (11.5)
31500 480 25 (635) 34 (865) 9HS31.5434-** 25 (11.5)
Three phase standard, single phase available as option. Add "-1" before thermal protector designator.
* Requires welded metal junction box and permanent P2 thermal overload protection.

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:
  • For use in most aqueous alkaline solutions and rinse tanks. Check solution recommendation chart or with your chemical supplier for proper sheath material selection.

RUGGED CONSTRUCTION:
  • Heavy wall sheaths in 316 stainless steel.

OUTSTANDING PERFORMANCE:
  • Watt densities of 40 watts/square inch (6.2 w/cm2) use minimal space and ensure long service life.

CORROSION RESISTANT HEAD:
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:
  • Grounded construction.
  • Thermal protector built in. Replaceable P1 protector standard for solutions up to 180° F (82° C).
  • Non-floating construction.

CERTIFICATIONS:
  • cULus and CE (except 600 volts).

SIZES:
  • 9,000 watts to 31,500 watts.

VOLTAGES:
  • 240 to 600 volts. Three phase standard, single phase available.

CONSULT FACTORY FOR THE FOLLOWING:

  • Replaceable thermal protectors:
    • P4: for solutions from 180° F (82° C) to 230° F (110° C).
  • Resettable thermal protectors:
    • P2: bi-metal switch for solutions up to 180° F (82° C).
    • P6: for solutions from 180° F (82° C) to 230° F (110° C).
  • L-shaped and other special configurations and lengths.
  • Longer wire and conduit lengths.
  • Lower watt densities for highly viscous solutions.
  • Titanium Elements.
  • Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.
