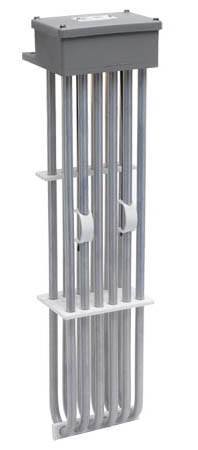

6HX Series, Six Element Fluoropolymer (PTFE) Heaters

6HX Series, Six Element Fluoropolymer (PTFE) Heaters
WATTS VOLTS HOT ZONE in./(mm) OVERALL LENGTH in./(mm) PROTECH MODEL NUMBER GUARD MODEL NUMBER SHIP WT. Lbs./(kg)
2000 120 9 (230) 17 (430) 6HX2117-** 6HX17G 19 (8.5)
2000 240 9 (230) 17 (430) 6HX2217-** 6HX17G 19 (8.5)
2000 480 9 (230) 17 (430) 6HX2417-** 6HX17G 19 (8.5)
3000 240 15 (380) 23 (585) 6HX3223-** 6HX23G 22 (10)
3000 480 15 (380) 23 (585) 6HX3423-** 6HX23G 22 (10)
4000 240 21 (535) 29 (735) 6HX4229-** 6HX29G 24 (11)
4000 480 21 (535) 29 (735) 6HX4429-** 6HX29G 24 (11)
6000 240 28 (710) 35 (890) 6HX6235-** 6HX35G 27 (12.5)
6000 480 28 (710) 35 (890) 6HX6435-** 6HX35G 27 (12.5)
8000 240 38 (965) 47 (1195) 6HX8247-** 6HX47G 33 (15)
8000 480 38 (965) 47 (1195) 6HX8447-** 6HX47G 33 (15)
10000 240 47 (1195) 59 (1500) 6HX10259-** 6HX59G 40 (18)
10000 480 47 (1195) 59 (1500) 6HX10459-** 6HX59G 40 (18)
12000 240 55 (1400) 68 (1725) 6HX12268-** 6HX68G 45 (20.5)
12000 480 55 (1400) 68 (1725) 6HX12468-** 6HX68G 45 (20.5)

Three phase standard.

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:
  • Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).

RUGGED CONSTRUCTION:
  • Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purged systems. Guaranteed 100% pinhole free.

OUTSTANDING PERFORMANCE:
  • Low watt density design (10 watts/square inch, 1.5 w/cm2) for long service life.

CORROSION RESISTANT HEAD:
  • Vapor resistant, flame retardant polypropylene terminal enclosure with 3-foot (.9m) flexible PVC liquid tight conduit.

SAFETY FEATURES:
  • Grounded internal metal element.
  • Thermal protector built in. Replaceable P1 protector standard for solutions up to 180° F (82° C).
  • Non-floating construction.

CERTIFICATIONS:
  • cULus and CE (except 600 volts).

SIZES:
  • 2,000 watts to 12,000 watts.

VOLTAGES:
  • 120 to 600 volts (600 watts CSA only). Three phase standard, single phase available.

CONSULT FACTORY FOR THE FOLLOWING:

  • Resettable thermal protectors:
    • P2: bi-metal switch for solutions up to 180° F (82° C).
    • P8: type-J thermocouple for solutions from 180° F (82° C) to 230° F (110° C).
    • P3: type-J thermocouple for solutions from 230° F (110° C) to 300° F (150° C).
  • Longer vertical lengths (cold zones).
  • Polypropylene guards: recommended for applications up to 180°F (82°C), sold separately.
  • Fluoropolymer (PTFE) guards: recommended for chromic acid or solutions over 180° F (82° C), sold separately.
  • L-shaped and other special configurations.
  • Longer wire and conduit lengths.
  • Lower watt densities for highly viscous solutions and technical acids.
  • Temperature and level controls sized to match the heater.

We recommend temperature controls and level controls for use with this immersion heater.
