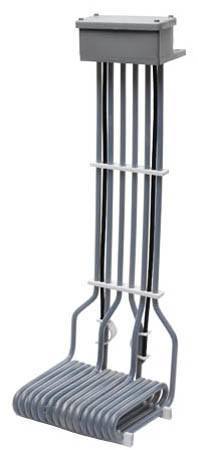

3HXOL Series, Multi Element L-Shaped Fluoropolymer (PTFE) Heaters

3HXOL Series, Multi Element L-Shaped Fluoropolymer (PTFE) Heaters
WATTS VOLTS WIDTH in./(mm) HOT ZONE in./(mm) STD. VERT. LENGTH* in./(mm) MAX. COLD ZONE PROTECH MODEL NUMBER GUARD MODEL NUMBER SHIP WT. Lbs./(kg)
3000 240 7 (180) 13 (330) 18 (460) 36 (915) 3HXOL3207-13-R*-** 3HXOL07-13-R* 20 (9.5)
3000 480 7 (180) 13 (330) 18 (460) 36 (915) 3HXOL3407-13-R*-** 3HXOL07-13-R* 20 (9.5)
4500 240 9 (230) 11 (280) 18 (460) 35 (890) 3HXOL4.5209-11-R*-** 3HXOL09-11-R* 21 (9.5)
4500 480 9 (230) 11 (280) 18 (460) 35 (890) 3HXOL4.5409-11-R*-** 3HXOL09-11-R* 21 (9.5)
6000 240 10 (250) 19 (485) 18 (460) 35 (890) 3HXOL6210-19-R*-** 3HXOL10-19-R* 22 (10)
6000 480 10 (250) 19 (485) 18 (460) 35 (890) 3HXOL6410-19-R*-** 3HXOL10-19-R* 22 (10)
9000 240 10 (250) 23 (585) 18 (460) 35 (890) 3HXOL9210-23-R*-** 3HXOL10-23-R* 36 (16.5)
9000 480 10 (250) 23 (585) 18 (460) 35 (890) 3HXOL9410-23-R*-** 3HXOL10-23-R* 36 (16.5)
12000 240 10 (250) 30 (915) 18 (460) 35 (890) 3HXOL12210-30-R*-** 3HXOL10-30-R* 42 (22)
12000 480 10 (250) 30 (915) 18 (460) 35 (890) 3HXOL12410-30-R*-** 3HXOL10-30-R* 42 (22)
15000 240 10 (250) 36 (915) 18 (460) 31 (790) 3HXOL15210-36-R*-** 3HXOL10-36-R* 48 (22)
15000 480 10 (250) 36 (915) 18 (460) 31 (790) 3HXOL15410-36-R*-** 3HXOL10-36-R* 48 (22)
18000 240 10 (250) 42 (1065) 18 (460) 25 (635) 3HXOL18210-42-R*-** 3HXOL10-42-R* 54 (24.5)
18000 480 10 (250) 42 (1065) 18 (460) 25 (635) 3HXOL18410-42-R*-** 3HXOL10-42-R* 54 (24.5)

Three phase standard.

Features and Benefits

SUPERIOR CHEMICAL RESISTANCE:
  • Inert to most aqueous acid, alkaline, anodizing and pickling solutions up to 212°F (100°C).

RUGGED CONSTRUCTION:
  • Heavy wall fluoropolymer (PTFE) covered stainless steel element reduces permeation and eliminates the need for gas purged systems. Guaranteed 100% pinhole free.

OUTSTANDING PERFORMANCE:
  • Low watt density design (10 watts/square inch, 1.5 w/cm2) for long service life.

EVEN HEATING:
  • Bottom design for even heating and varying liquid levels.

CORROSION RESISTANT HEADS: Vapor resistant, flame retardant polypropylene terminal enclosures each with 3-foot (.9m) flexible PVC liquid tight conduits.

SAFETY FEATURES:
  • Grounded internal metal element.
  • Thermal protector built in. Replaceable P1 protector standard for solutions up to 180° F (82° C).
  • Non-floating construction.

CERTIFICATIONS: cULus and CE (Except 600 volts).

SIZES:3,000 watts to 18,000 watts.

VOLTAGES::
  • 120 to 600 volts.
  • Three phase standard, single phase available.

CONSULT FACTORY FOR THE FOLLOWING:

  • Resettable thermal protectors:
    • P2: bi-metal switch for solutions up to 180° F (82° C).
    • P8: type-J thermocouple for solutions from 180° F (82° C) to 210° F (99° C).
    • P3: type-J thermocouple for solutions from 210° F (99° C) to 250° F (121° C).
  • Longer vertical lengths (cold zones).
  • Polypropylene guards: recommended for applications up to 180°F (82°C) (sold separately).
  • Fluoropolymer (PTFE) guards: recommended for chromic acid or solutions over 180° F (82° C) (sold separately).
  • Special configurations.
  • Longer wire and conduit lengths.
  • Flexible continuous fluoropolymer leads (P3 protector only).
  • Lower watt densities for highly viscous solutions and technical acids.
  • Temperature and level controls sized to match the heater.
  • Single phase power.

We recommend temperature controls and level controls for use with this immersion heater.
